SHAPE DOVETAIL SHOULDER PAD

1055914

New product

SKU: 1055914
1 x Shoulder Pad with Dovetail

- +

More info

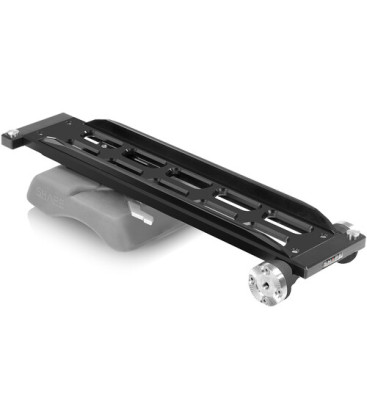

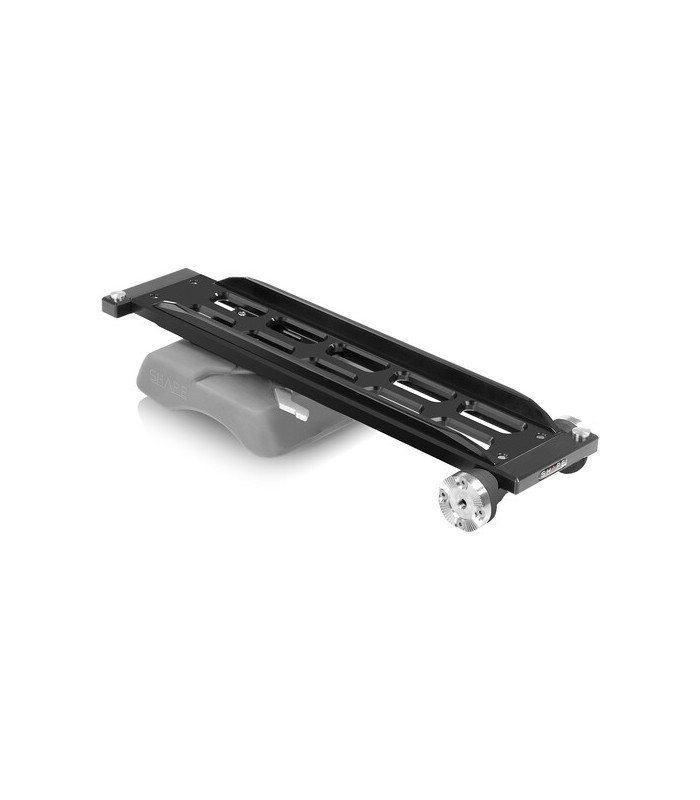

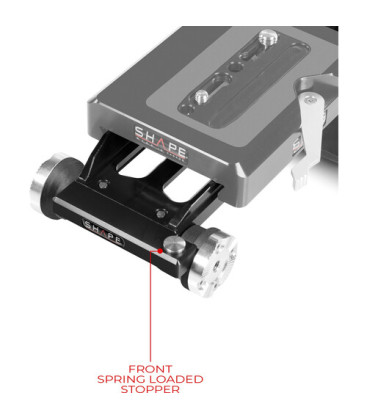

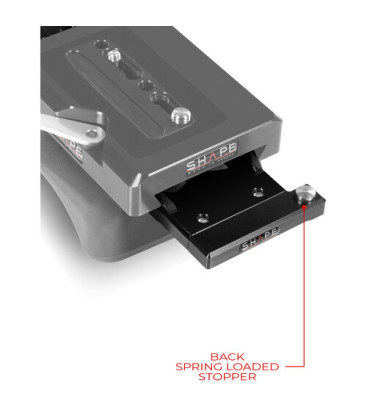

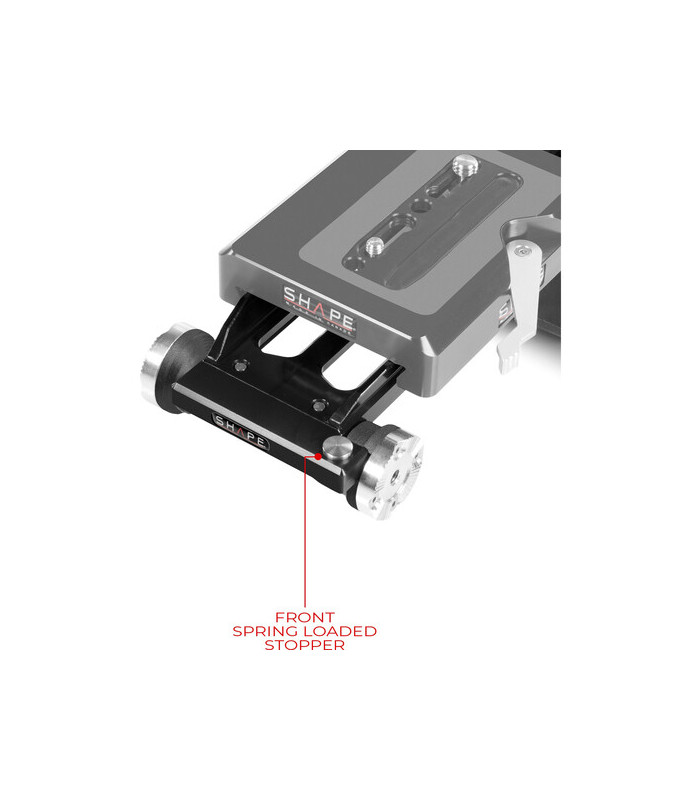

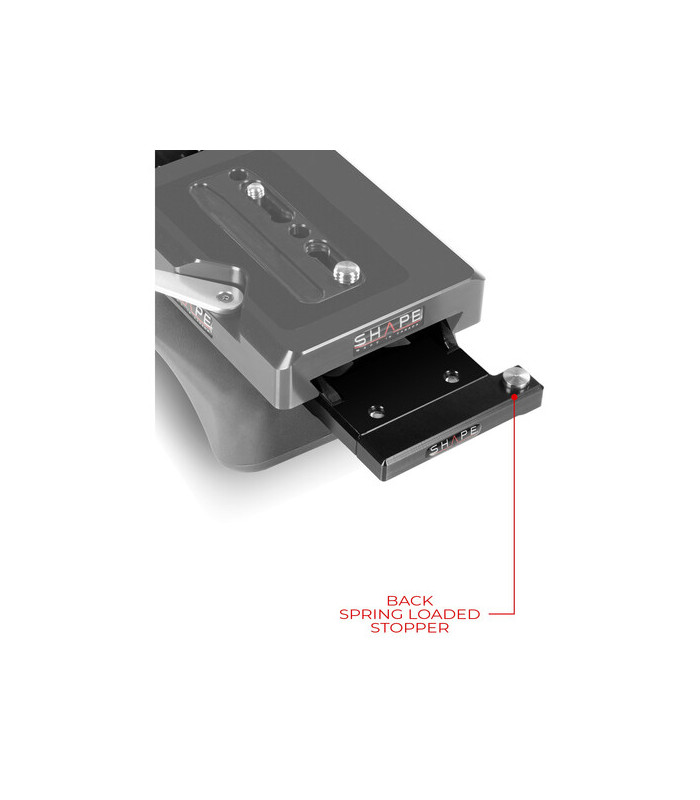

Designed to be compatible with all three industry-standard ARRI-Style bridge plates, this ARRI Dovetail with Adjustable Shoulder Mount from SHAPE offers a highly customizable mount for your camera rig. Spring-loaded stoppers on either end of the mount prevent the bridge from sliding off but allow for quick release when pressed.

A shoulder pad on the bottom of the dovetail can be adjusted along the track to distribute the rig's weight effectively. Two ARRI rosettes at the front allow you to integrate handgrips of your choice. Constructed with CNC aluminum, the shoulder mount is designed to be durable.








Specifications






Support TypeShoulder Support
Grip TypeGrip Required (Not Included)
Mounting
Rod Standard15 mm LWS / 60 mm Spacing, 15 mm Studio / 100 mm Spacing, 19 mm Studio / 104 mm Spacing
Battery Plate TypeNone
Accessory MountingNone
Camera MountingARRI Dovetail
Tripod MountingNone
Shoe MountingNone
Rosettes2 x ARRI Rosette w/ M6 Female Thread
General
MaterialsAluminum
Dimensions12.8 x 4.5 x 2.5" / 32.5 x 11.4 x 6.3 cm
Weight1.8 lb / 0.8 kg
Packaging Info
Package Weight2.52 lb
Box Dimensions (LxWxH)14.7 x 6.4 x 4.5"
