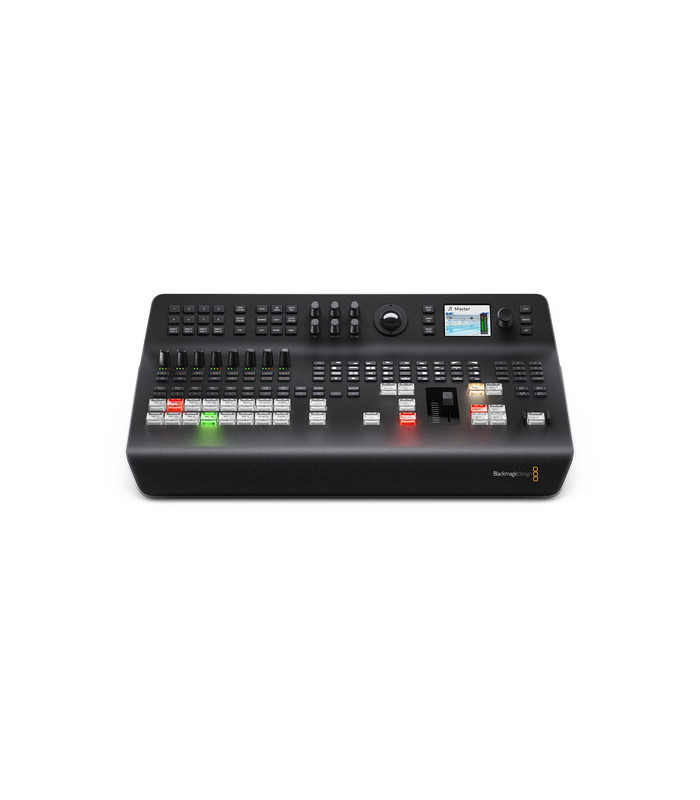

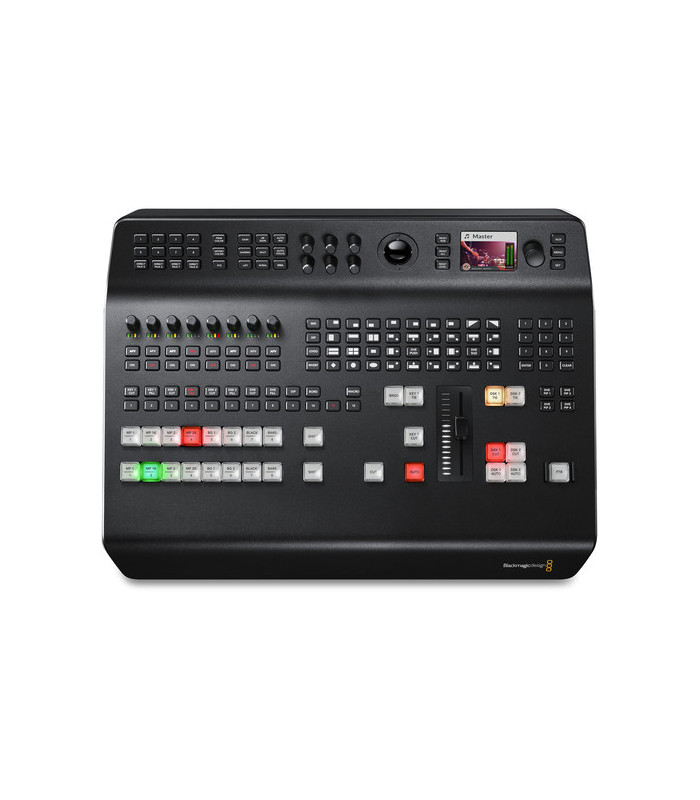

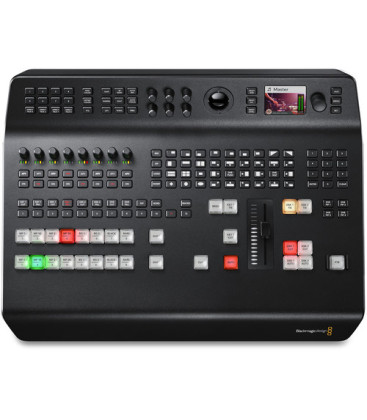

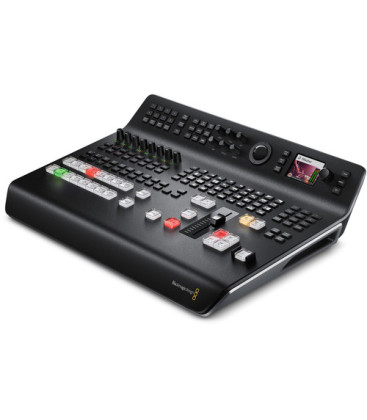

BLACKMAGIC ATEMSTUDIO TV 4K

1001182

New product

SKU: 1001182
1 x Video mixer
1 x Power cord

- +

More info





Specifications

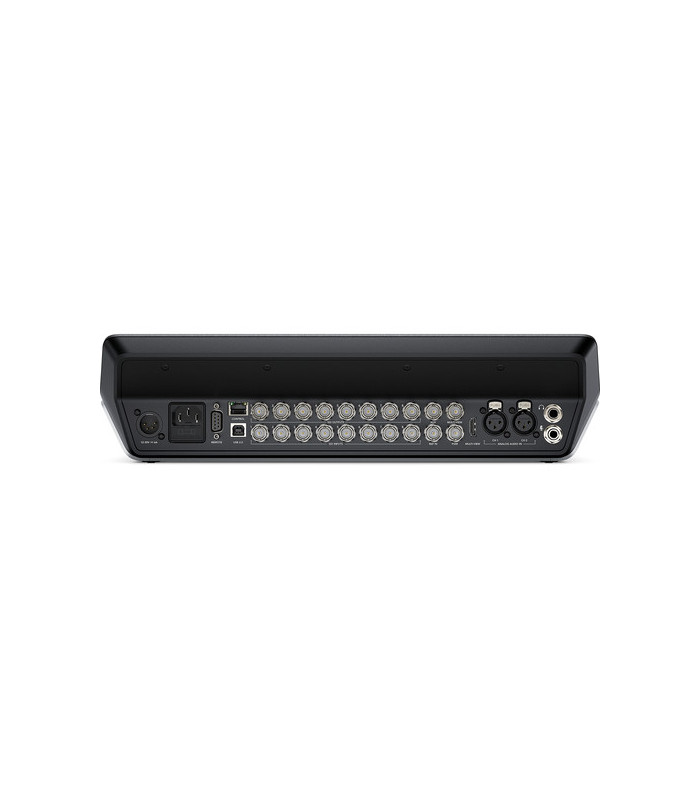

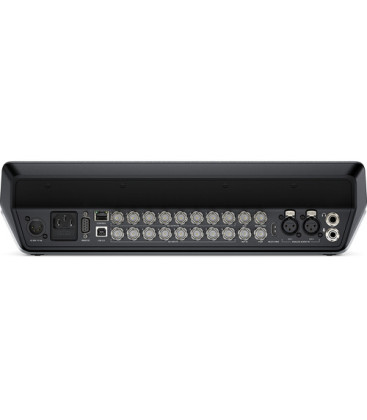

I/O
Inputs12G/HD/SD-SDI: 8 x BNC

Audio: 2 x 3-Pin XLR

Reference: 1 x BNC
Outputs12G/HD/SD-SDI: 8 x BNC

Auxiliary: 1 x BNC

Program: 1 x BNC

Multiview: 1 x BNC

Multiview: 1 x HDMI

Headphone: 1
Other1 x RS-422

1 x Ethernet

1 x USB 2.0

1 x AC Power In

1 x 4-pin XLR Power In
Standards
Format SupportUHD Video:

2160p: 59.94/50/29.97/25/24/23.98



HD Video:

1080p: 59.94/50/29.97/25/24/23.98

1080i: 59.94/50

720p: 59.94/50



Input Resolutions for Computers

2160p: 59.94/50/30/29.97/25/24/23.98

1080p: 59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50

720p: 59.94/50
SDI Compliance292M, 424M

2081, 2082
Video Sampling4:2:2, 10-Bit
Color Precision4:2:2, 10-Bit
Color Space4:2:2 YUV
Color Space ConversionNone
Processing Delay6 Lines
General
Audio Mixer12-Input x 2-Channel Mixer
KeyersUpstream: 1 with Chroma/Linear/Luma Key

Downstream: 2

Chroma: 1

Linear/Luma: 3

Transition (Stinger/DVE): 1
LayersUp to 5
GeneratorsPattern: 2

Color: 2
DVEBorder and Drop Shadow: 1
Number of WindowsMultiview: 1 x 10

Routable: 8

Fixed, Program, and Preview: 2
Media PlayerPlayers: 2 (Non-Volatile Flash Memory)



Media Pool Still Image Capacity: 20 (with Fill and Key)



Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, TIFF



Channels: Fill and Key for Each Media Player



Media Pool Clip Capacity: 2 (with Fill and Key / Shared Pool)



Media Pool Clip File Format: TGA Sequence



Media Player Clip Length:

UHD 4K: 90 Frames

1080 HD: 360 Frames

720 HD: 1440 Frames



Media Pool Audio File Format: WAV, MPE, AIFF
Compatible Operating SystemsMacOS 10.12 Sierra

MacOS High Sierra 10.13 or Higher

Windows 8.1 or 10
Power SupplyAC: 110-240 VAC Internal

DC: 1 x 4-Pin XLR
Power Draw70 W
EnvironmentalOperating: 41 to 104°F / 5 to 40°C

Storage: -4 to 140°F / -20 to 60°C

Relative Humidity: 0 to 90% Non-Condensing

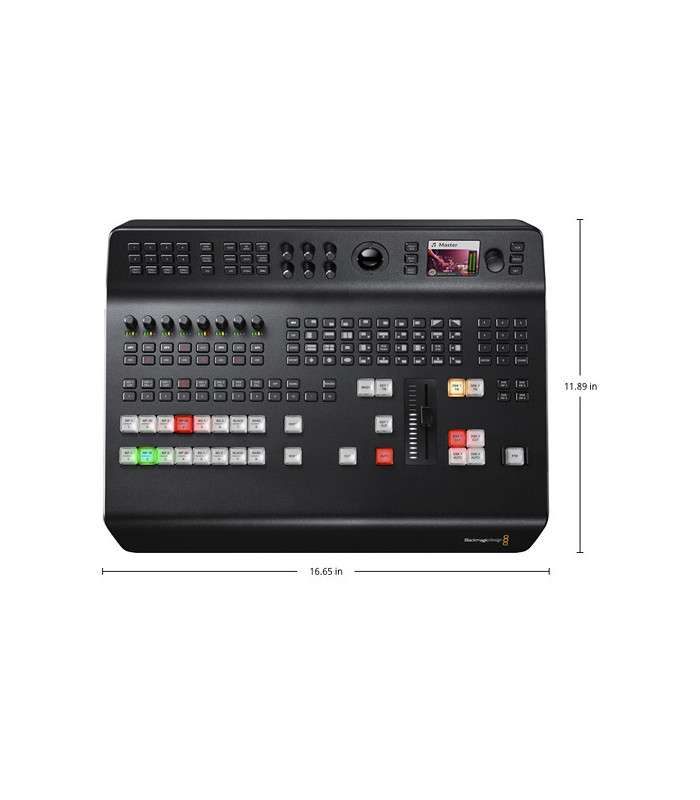

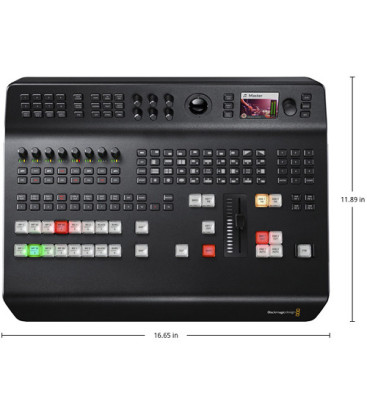

Dimensions16.65 x 11.89" / 42.29 x 30.2 cm
WeightNot Specified by Manufacturer
Packaging Info
Package Weight15 lb
Box Dimensions (LxWxH)21.1 x 16.8 x 9.1"
